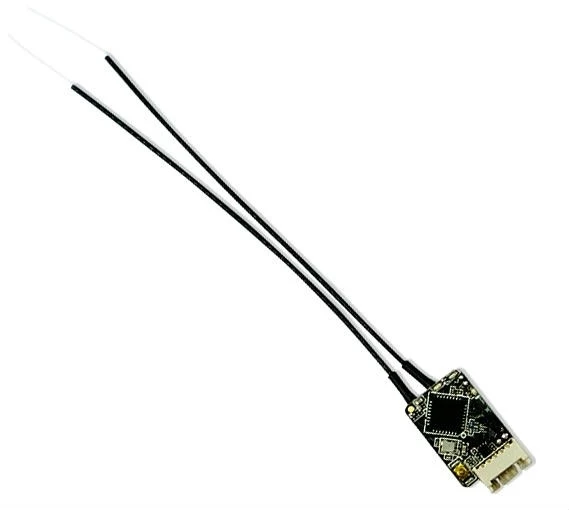

FrSky R-XSR EU-LBT 2.4Ghz 16CH S-BUS & CPPM Receiver

The FrSky R-XSR EU-LBT 2.4Ghz S-BUS & CPPM receiver allows for 16 channels on S-bus & 8 channels on CPPM. With a small size, only 1.5g & 16 x 11 x 5.4mm the FrSky R-XSR is small, however it still has the same full range features of the FrSky XSR receiver. Even the smallest of racing drones has a space for one of the ultra small R-XSR RX.

This receiver is compatible with the following FrSky X-Series Radio’s and Modules. X9D, X9DP, X9E & X12S in D16 mode. (R-XSR not compatible with D-Series Module). The Taranis X9D Plus is one of the most popular radio’s on the market to date, used for fixed-wing, helicopter, glider and multi-rotor aircraft.

Features.

• Smart Port enabled, allowing full two-way duplex transmission / telemetry

• SBUS and CCPM output

• Smaller and lighter than the XSR Receiver

• More channels: 1~16 from SBUS Channel 1, 1~8 from CCPM Channel

Specification.

• Dimensions: 16 x 11 x 5.4mm (LxWxH)

• Antenna Length: (Dual, 90mm)

• Weight: 1.5g

• Operating Voltage: 3.5~10.0V

• Operating Current: 70mAh @ 5V
