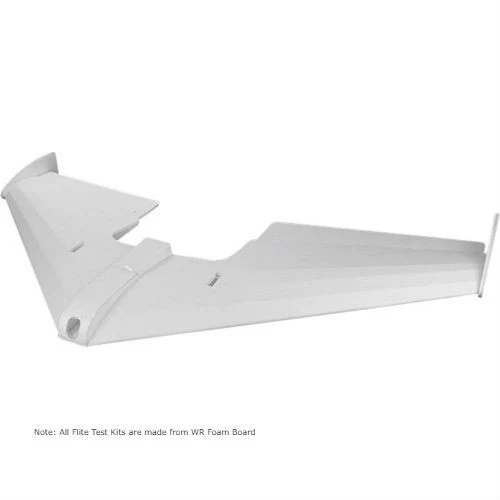

Flite Test Mighty Mini Arrow Speed Build Kit

The Flite Test Mighty Mini Arrow appears at a time where FPV race wings are becoming increasingly popular, among both multi-rotor and fixed wing pilots. The Mini Arrow is small enough to be strapped to your backpack much like a race quad, and once equipped with FPV can deliver fun in equal measures.

The durable yet simple design makes this model easy to build and fun to fly with excellent flight characteristics. Adding FPV is entirely optional making it a favorite for both FPV and traditional flyers. Its light weight and durability also make it a great combat wing when flying with friends, and much faster when flown on a 4S battery.
The kit includes a laser cut foam air frame, making the build process very fast only requiring hot glue and clear tape for assembly.

A hardware pack is also supplied to complete the air frame, ready for your R/C electronics installation. The WR foam is specially coated making it possible to paint or apply vinyl decals to customize the model to your own taste.

Specification
Wingspan: 29 inches (737mm)

Weight: 170g (without battery)

COG: 1.75inches (44mm) in front of rear firewall (recommended)

Control Throws: 30 Degree

Expo: 30% (recommended)

Power Pack: A or F (Minis) or equivalent

Kit Includes
• Laser-cut foam air frame

• Mini power pod

• FT firewall

• Push rods

• Control horns

• BBQ Skewers

• Throw Gauge

• Velcro

• Specification sheet

Needed To Complete
• Brushless Motor: 2204-2205 2200kV

• ESC: 20 amp

• Propeller: 6×4.5

• Servo: x2 5g micro servo

• Battery: 3-4S 800-1000mAh

Please click here for the build instruction video.

Note: The Flite Test speed build kits are made from 5mm thick Flite Test WR FT4000 Adams foam board sheet.
