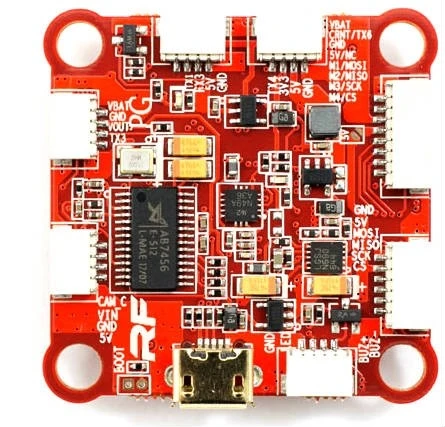

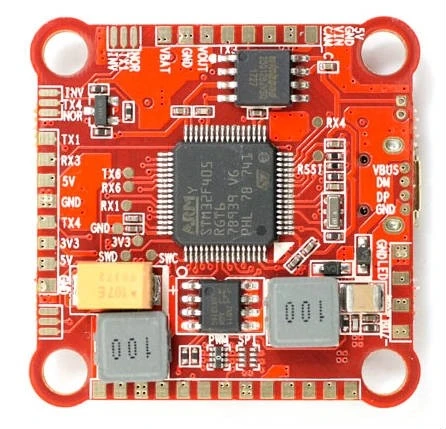

FlightOne Raceflight RevoltOSD F4 Flight Controller

FlightOne Raceflight RevoltOSD F4 Flight Controller

FlightOne RevoltOSD F4 Flight Controller is currently the most technologically advanced, performance driven flight controller ever designed. Building on the Raceflight Revolt V3 the FlightOne RevoltOSD utilises a powerfull F405 MPU processor, accompanied with invensense high speed 20602 gyros enabling it to make full use of FlightOne’s efficient coding to run at 32KHz for the maximum performance possible.

This version of the RaceOne RevoltOSD F4 board allows upto 6S direct voltage input and uses an internal OSD allow for quick and simple FPV installs without adding a separate OSD at extra cost, weight and space to your aircraft. Performance and stability are improved through better vibration rejection technology implemented in FlightOne RevoltOSD, and intergrated FlightOne Gummies again provide better dampening and vibration absorption. The new Invensense 20602 gyro gives you the highest speeds possible with the lowest noise floor and highest sensitivity which has only ever before been used in the Revolt boards.

Setting up the FlightOne RevoltOSD F4 Flight Controller is straightforward, a simple solder pin layout is easy to read and is all conveniently labelled and accompanied by useful pinout diagrams. You can use the FlightOne Bolt 32 4 in 1 ESC to make the install even easier & quicker. The Flightone wizard then allows you to efficiently set up your board with minimal fuss. Zadig and other complex driver installer software are now a thing of the past thanks to the Revolt’s new driverless installation technology. The FlightOne Revolt also features DFU free updating and a self-healing and updating bootloader, just in case something does go wrong.

Specification

• LED Driver for WS2812b programmable LED

• SBUS Inversion

• High Speed 32khz gyro, lowest noise floor and highest sensitivity gyro ever used

• Through hole solder pads – forms an I-Beam when soldered for extra strength

• FrSky Taranis, Spektrum, Futaba, JR, IBus, Sbus and other radio support

• Integrated buzzer driver

• Voltage and current ADC pins, for full voltage and current monitoring

• Full telemetry output support

• ESC flashing and configuration built into configurator

• Most active software development

• Selectable 3.3 voltage

• 3 serial uarts

• Bluetooth expandable

• F4 processor

• 16mb of flash memory

• GPS expandable

• Pins into FlightOne Bolt 4in1 ESC

• Dimensions: 36mm x 36mm

• Mounting holes: 30.5mm squared to center of holes
