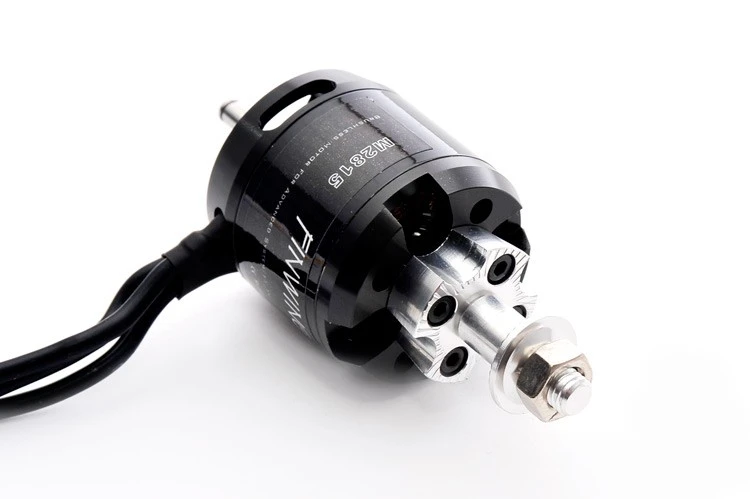

Finwing Penguin V2 M2815 Brushless Motor

The Finwing Penguin V2 M2815 Brushless Motor, designed to achieve best performance with the Finwing Penguin air frame. Providing up to 1.95kg of static thrust makes it ideal for FPV models weighing up to 2.2kg. A performance upgrade if your currently using the Finwing 2220 brushless motor, commonly used with aircraft weighing up to 1.8kg.

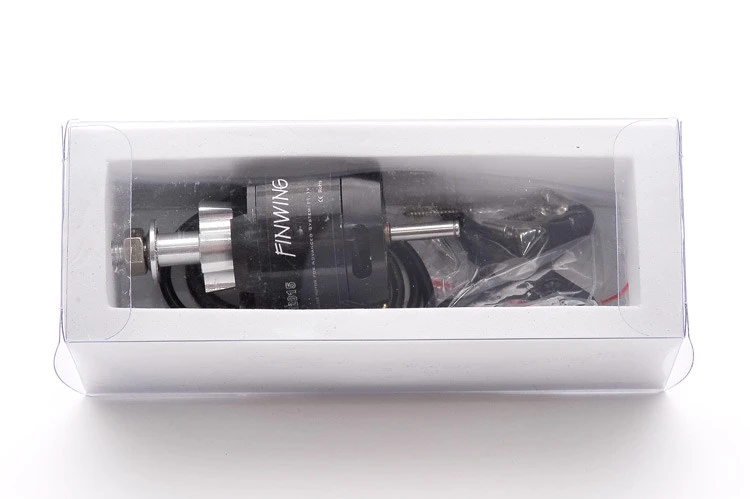

Suppled with fitted 4mm gold bullet connectors making installation quick and simple, combine this with 130mm length 16AWG multi-strand silicone coated wire giving maximum efficiency, allowing for high current draw with minimal resistance and heat build up. The motor is also supplied with all the mounting hardware including a 4mm thick aluminium mounting plate with screws, and 5mm prop adapter.

You have the option to remove the factory fitted prop adapter by removing the (x4) 2mm allen key bolts, allowing you then to use another type or fit a conventional prop adapter to the 4mm motor shaft located at the rear of the motor (approx. 17mm length).

The motor shaft can also easily be reversed/replaced by removing the collet and C-clips holding it in place, using a small allen key and pair of long nose pliers.

It is recommended to use with motor with the Finwing 60 amp Brushless ESC and either a 3s or 4s Lipo battery.



Specification

• Case Size: 28mm x 15mm

• Shaft Diameter: 4mm

• Prop Adapter: Aluminium 5mm Diameter, 24mm Shaft Length

• Recommended ESC: Finwing 60 amp Brushless

• Recommended Battery: 2-4s Lipo

• Motor Connections: 4mm Gold Bullet Connectors

• Wire Gauge: 16AWG

• Wire Length: 130mm

• Weight: 125 grams (Including Prop Adapter)

• Static Thrust: 1.95kg (using recommended propeller, 3s Lipo)

• Recommended Model Weight: Upto 2.2kg
