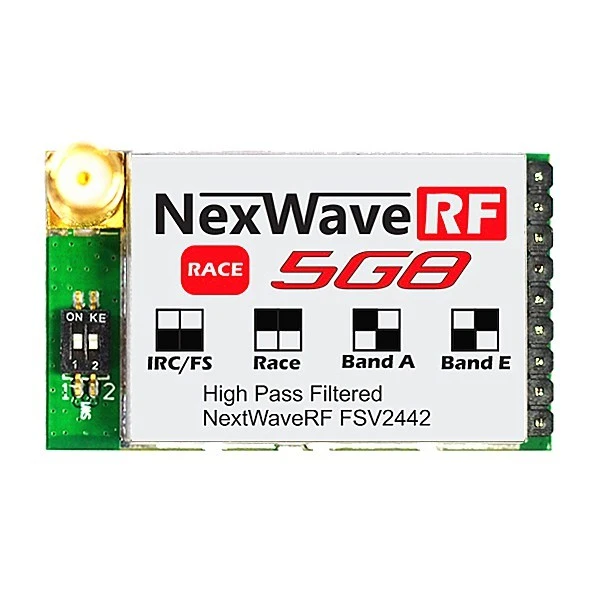

FatShark Dominator 5.8ghz NexwaveRF RaceBand Receiver Module

The FatShark Dominator 5.8 Ghz NexwaveRF RaceBand RX module is the perfect addition to the Dominator First Person View goggles, the module fits inside the goggles, installation is very easy to do and fits behind the plastic cover on the right of the goggles when looking from the front. The Nexwave RF Rx module has a -90dBm sensitivity which gives about a 40% increase in range over previous generations of the Rx Module.

The Dominator 5.8 Ghz NexwaveRF RX module receives both audio and video, and removes the need for any additional wiring to the goggles which gives a great freedom to move around.

The Dominator 5.8 Ghz NexwaveRF Race Band RX module operates with the following transmitter frequencies:



0-0	Band 1	FS/IRC	5740	5760	5780	5800	5820	5840	5860	5880
0-1	Band 2	Boscam E	5705	5685	5665	5645	5885	5905	5925	5945
1-0	Band 3	Boscam A	5865	5845	5825	5805	5785	5765	5745	5725
1-1	Band 4	RaceBand	5658	5695	5732	5769	5806	5843	5880	5917

The traditional channels are still supported for non race bands used with the Vortex:

• 5740MHz

• 5760MHz

• 5780MHz

• 5800MHz

• 5820MHz

• 5840MHz

• 5860MHz
