Eagle Tree Eagle Eyes FPV System

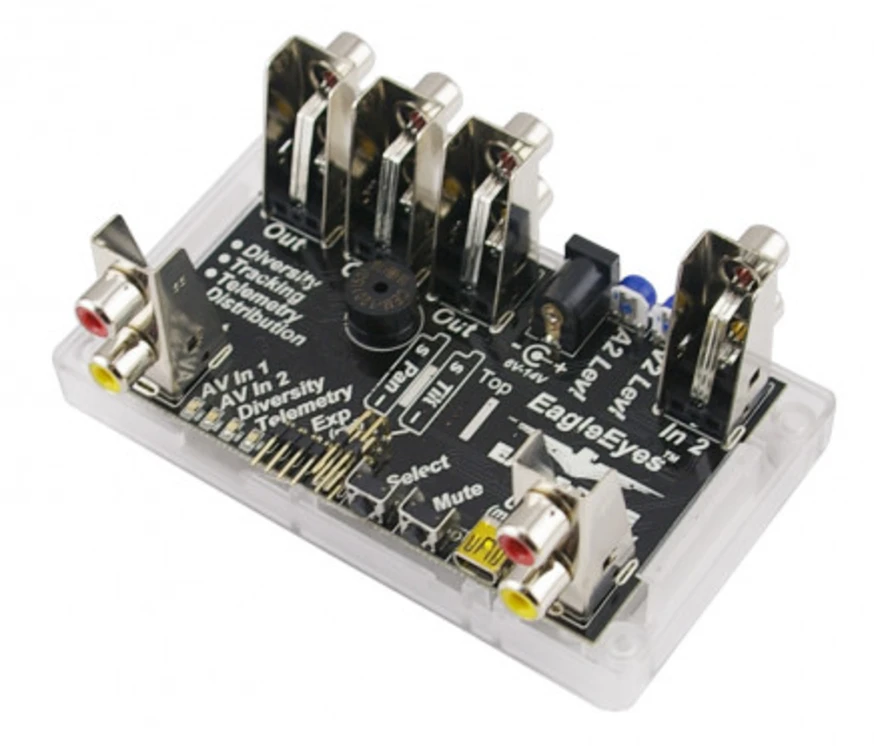

The Eagle Tree Eagle Eyes FPV Station integrates four of the main components you need for model airplane FPV on the ground, at a cost that’s lower than many of the individual components presently available! New: now includes clear plastic case with removable top, and mounts for the PowerPanel LCD display.

Receiver Diversity: – when you connect two NTSC or PAL audio/video receivers (of any frequency), the EagleEyes picks the better signal at any given time, which can greatly reduce video fades and improve your FPV experience! A variety of diversity settings are configurable with the on-board switches and LED indicators.

Antenna Tracking – Is your video transmitter suffering from low range? When coupled with our Vector or OSDPro OSDs, the EagleEyes is the heart of a full-featured pan/tilt antenna tracker. Powerful, easy to use PC software and on-screen menus are provided for adjusting the EagleEyes to work flawlessly with the tracker of your choice. An exclusive to Eagle Tree, multiple pan points can be calibrated, resulting in greater panning accuracy even if your pan servos are somewhat nonlinear. The built-in regulator drives even large pan/tilt servos, with no need for an external BEC.

Telemetry – When coupled with our Vector or OSDPro OSDs, all Eagle Tree data (not just GPS position) is transmitted to your laptop, via your video transmitter and the EagleEyes USB port (separate USB cable required). Your model’s flight can then be graphed and displayed with our powerful software, or visualised (either in real time or after your flight) with Google Earth! With the EagleEyes, telemetry is embedded invisibly in the video, rather than in the audio channel. We chose video telemetry because it is much more reliable and faster than audio telemetry, and audio telemetry takes up your audio channel, so you can’t hear motor sounds, Vector or OSDPro voice prompts, etc.

Four Channel A/V Distribution – Ever wish you had more video/audio outputs? The EagleEyes has four built-in outputs!

Programmable Low Voltage Alarm – How is your ground station battery doing? Now you can program a low voltage alarm buzzer, which alerts you when your battery is below your chosen voltage. The buzzer can also be programmed to alert for other conditions, such as poor telemetry signal.

PowerPanel LCD Display – Now you can plug our PowerPanel LCD directly into the EagleEyes, and snap it inside the EagleEyes case, for real-time GPS position display, with additional display features coming soon. With the LCD, the last known GPS position is remembered and displayed, in case you lose contact with your model.
