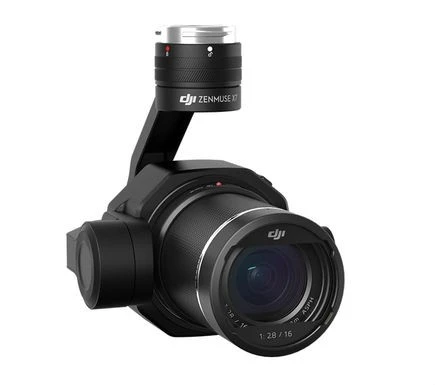

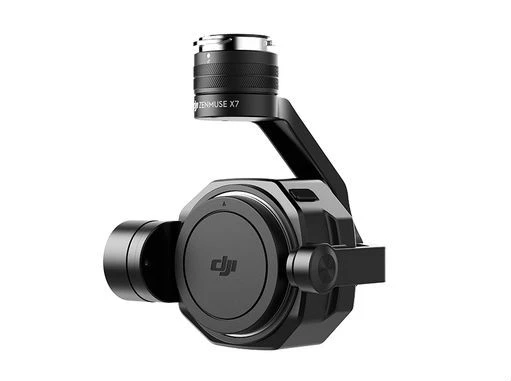

DJI Zenmuse X7 Camera

The DJI Zenmuse X7 is a compact Super 35 camera with an integrated gimbal made for high-end film making that delivers stunning resolution and image quality. Its compatibility with the Inspire 2 offers the best in next-level professional aerial cinematography. A 24 MP CMOS sensor rated at 14 stops of dynamic range preserves astonishing detail and offers both 6K CinemaDNG and 5.2K Apple ProRes with support for continuous RAW burst shooting at 20 fps and 24 MP stills. The DJI Zenmuse X7 also introduces the DL-Mount, the world’s first integrated aerial lens mount that allows switching between four available prime lenses quickly. For seamless editing, a new DJI Cinema Color System preserves accurate colors for easier post-processing. These latest innovations allow filmmakers to reach new heights and capture scenes as they imagine them with the DJI Zenmuse X7. The Lenses need to be bought for this camera, they are not supplied with the camera / gimbal, these are the required DJI Zenmuse X7 DL/DL-S Lens Set.

The X7 uses a Super 35 sensor, and its high readout speed supports RAW output at 6K/30 fps and 3.9K/59.94 fps. The pixel size reaches 3.91 µm and the diagonal length of the sensor is 26.6 mm when recording. A sensor this size offers a higher sensitivity to light and 14 stops of dynamic range — much wider than the 12.8 stops featured on the Zenmuse X5S.Furthermore, the SNR of the X7 is 46 dB, 8 dB higher than the X5S, and the tonal range is as high as 9.41 bits. All of these features offer unlimited creative options for a better workflow in the most demanding situations on set.

Taking advantage of new FSI-Cu technology, the X7’s sensor features thinner interconnection, allowing light to reach the sensing area via alarger incident angle for increased photosensitivity. This enables amore compact lens mount to be used on this sensor while maintaining excellent image quality.The flange focal distance of the DL-Mount is less than 17 mm – roughly 1/3 of the size of a PL-Mount. Such a compact mount means that the X7 weighs only about 630 g with a lens included. Together, the X7 and Inspire 2 weigh around just 4 kg with the ability to capture the same challenging shots as more heavy-duty setups weighing up to 40 kg.

DJI offers four prime lenses for the DL-Mount system, with focal lengths ranging from 16-50 mm and resolutions of up to 8K. Made of lightweight carbon fiber and designed by world-leading optics teams, the four lenses have been embedded with advanced technologies crafted specifically for the X7’s high-end image sensor.

To unleash the X7’s full potential, the CineCore image processing system on the Inspire 2 has been fully upgraded to CineCore 2.1.It is capable of recording 6K/30fps CinemaDNG and 5.2K/30fpsApple ProRes, leaving more creative options in post-production.A brand new EI Mode has been integrated into CineCore 2.1, which can record high-quality footage at various levels of sensitivity. Additionally, the upgraded image processing system further reduces image artifacts and noise, preserving more details while adopting an improved dark level correction system for pro-level cinematic images.Apart from improved image processing performance, CineCore 2.1 also features a new color system, giving professional filmmakers more creative flexibility in post-production.

The new color system consists of a new D-Log curve and a D-Gamut RGB color space. With professional cinematography in mind, the D-Log can encode 15 stops of dynamic range, two stops higher than the Zenmuse X5S. Even in poor light conditions, the X7 can still preserve stunning detail in shadows and highlights, leaving more room for post-production creativity.

D-Gamut covers the entire DCI-P3 color space commonly used in filmmaking. Tailored for aerial cinematography and stills photography,D-Gamut provides larger green tone coverage, delivering beautifulgreen gradation for your shoots.

D-Gamut also offers optimized skin tone adjustment by moving these tones to their most suitable chromaticity, ensuring vivid colors are reflected from every inch of skin. By applying the dedicated 3D-LUTin color grading, skin tones will softly transition, even with wide exposure differences. When designing D-Gamut, we considered manual color grading, preventing skin tones from turning yellow when editing without 3D-LUT or color management.
