DJI Zenmuse Canon Z15-5D Mark III HD Gimbal

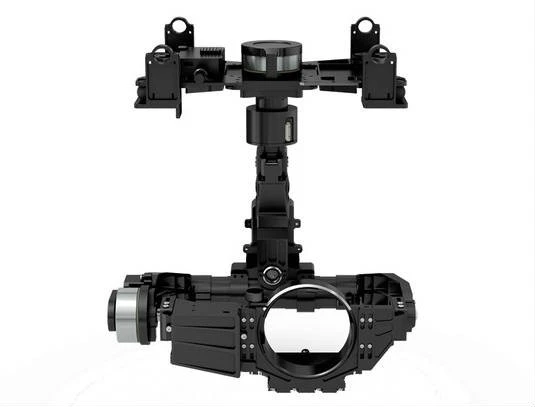

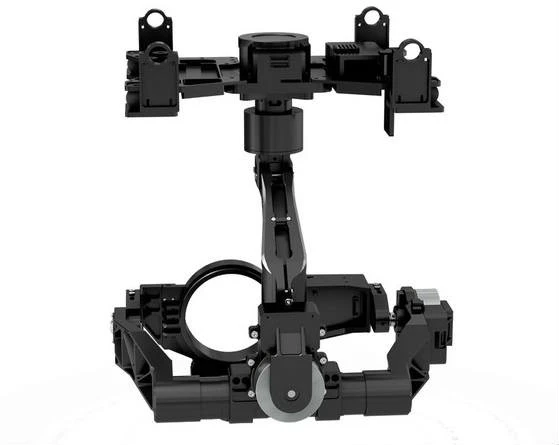

Zenmuse Z15-5D Mark III HD Gimbal

The Zenmuse Z15-5D Gimbal for the Canon 5D Mark III from DJI. It’s the next evolution of 3-Axis professional gimbals, and is customized specifically for the Canon 5D Mark II. With multiple control modes, 3-axis rotation control, built-in independent IMU and infrared modules, and a gimbal servo drive module, the Zenmuse Z15-5D HD is a total solution for your gimbal needs.

Features:

The Next Evolution in 3-Axis Professional Gimbals, the DJI Zenmuse Z15-5D Gimbal, based on the technology of the Zenmuse Z15 series gimbal, inherited its predominant strength/weight ratio because of its unique structural design. This release marks another breakthrough in gimbal systems and the precision range of the control angle is within ±0.02°. When used with DJI A2 professional flight controller and an Octo-copter, it will remain stable and precise while controlling any camera equipment even if the aircraft is in a strong wind or traveling at high speeds.

Customized Gimbal Design For The Canon 5D Mark III, in order to ensure the gimbal functions at its best and outputs nothing but industry level images, DJI provides a customized Gimbal in accordance with the latest in camera technology. The Canon 5D series camera has been providing an unparalleled customer experience as it offers excellent video quality and a variety of recording formats, bit rates and frame rates… and with up to 1920×1080/24P shooting ability, the Canon 5D is a perfect camera for almost everything in the world of aerial photography.

Multiple Control Modes, the Zenmuse Gimbal system offers three types of control modes. Orientation-locked control mode, Non Orientation-locked control mode and Back to Mid-point mode (Horizontal mode). These three modes can be switched both quickly and easily to support the many different requirements of aerial photography.

3-Axis Rotation Control, on the Zenmuse Gimbal system has a creative mechanical design. The control method is simple and easy to use as the movement range of the transmitter stick has direct control over the relative rotation speed. The tail potentiometer greatly increases control, stability and precision, and the internal slip rings avoid needlessly complicated wiring. Both the power and signal lines are integrated into the tubes of the Gimbal, which presents a completely unhindered control axis without limitation providing a maximum Yaw of ±360°, a maximum Pitch of -120°to +15°and a maximum Roll of ±25°.

Built-In Independent Imu Module And Infrared Module, with DJI’s new stabilizing algorithm represents the latest in innovation which, together with highly-precise induction devices, provides perfect performance of attitude control. This integration means that without the requirement of extra installation and connection of extra wires, it is both easy to assemble and extremely stable during flight. The gimbal also provides a specially designed and customized video output module, which includes an infrared shutter control function.

Gimbal Servo Drive Module, thanks to the special DJI Customized Gimbal Servo Drive Module, the Zenmuse series of Gimbals offers excellent high precision control characteristics. With high precision, low vibration and high torque characteristics, this module provides additional quality stabilizing features.

The Total Solution? The Zenmuse Z15-5D Gimbal system is a perfect match to the DJI Spreading Wings S1000 Octo-copter flight platform and other products such as the A2 and WooKong-M flight controllers for multi-rotor. Combining this gimbal with the iOSD Mark II and the 5.8G video link allows you to enjoy a convenient, professional and complete aerial photography experience.

Specifications



General	Built-In Functions Three Working Modes · Orientation-locked control · Non orientation-locked control · FPV mode (Reset) Built-in independent IMU module DJI gimbal special servos drive module Wireless video transmission supported Camera shutter control supported Wide range voltage input supported S-Bus/PPM Receiver supported
Peripheral	Supported Camera CANON EOS 5D MARK II; CANON EOS 5D MARK III   Current Supported Lens CANON EF 24mm f/2.8 IS USM   GCU Input Power 4S~12S LiPo Battery   Control Requirement Four spare receiver channels at least   Assistant Software System Requirement Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mechanical & Electrical Characteristics	Working Current Static current: 200mA (@25V) Dynamic current: 400mA (@25V) Locked-rotor current: 4A (@25V)   Operating Temperature -10°C ~ 50°C   Weight 1.42Kg   Dimensions 204mm × 242mm × 264mm   GCU Weight 63g   GCU Dimensions 64.2 mm ×34.1mm ×19.5mm
Working Performance	Load Weight (Reference Value) 2615g(5D MARK II with SD Card & Battery & CANON EF 24mm f/2.8 IS USM Lens) 2664g(5D MARK III with SD Card & Battery & CANON EF 24mm f/2.8 IS USM Lens)   Controlled Angle Accuracy ±0.02°   Maximum Controlled Rotation Speed Pan axis: ±90°/s Tilt axis: ±130°/s Roll axis: ±30°/s   Controlled Rotation Range Pan axis control: ±360° continuous rotation Tilt axis control: From -120° to +15° Roll axis control: ±25°
