DJI Z15-GH4 Zenmuse Gimbal (HD)

DJI Z15-GH4 Zenmuse Gimbal (HD)

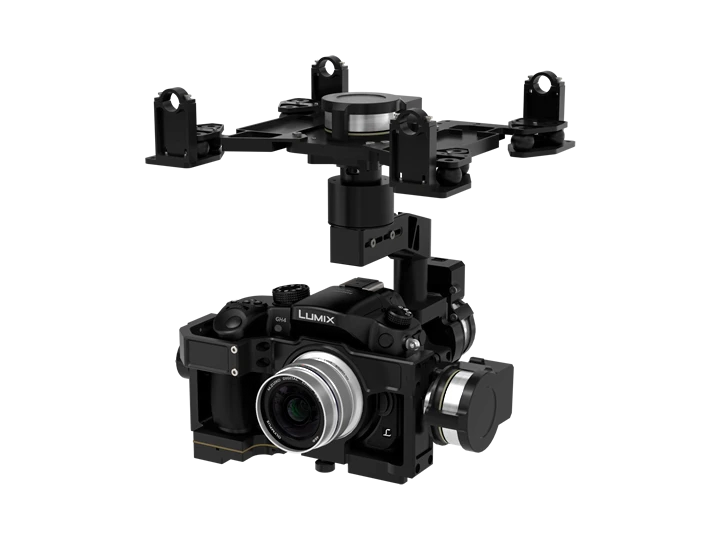

The DJI Zenmuse Z15-GH4 (HD) camera gimbal is the next brushless gimbal released from the DJI camp, the GH4 gimbal is an upgraded version of the very popular Zenmuse Z15-GH3. The GH4 Zenmuse represents the latest in brushless gimbal control and continues to deliver another level in precision and control. The Z15-GH4 delivers a precise control range of just ±0.01° which means that you have ultimate control when using this gimbal with a DJI professional aerial system like the DJI S900 Evo or DJI S1000 OctoCopter. The DJI Zenmuse Z15-GH4 is the ideal gimbal for aerial cinematography and photography and will remain stable and under control even in strong winds and during high speed flights.

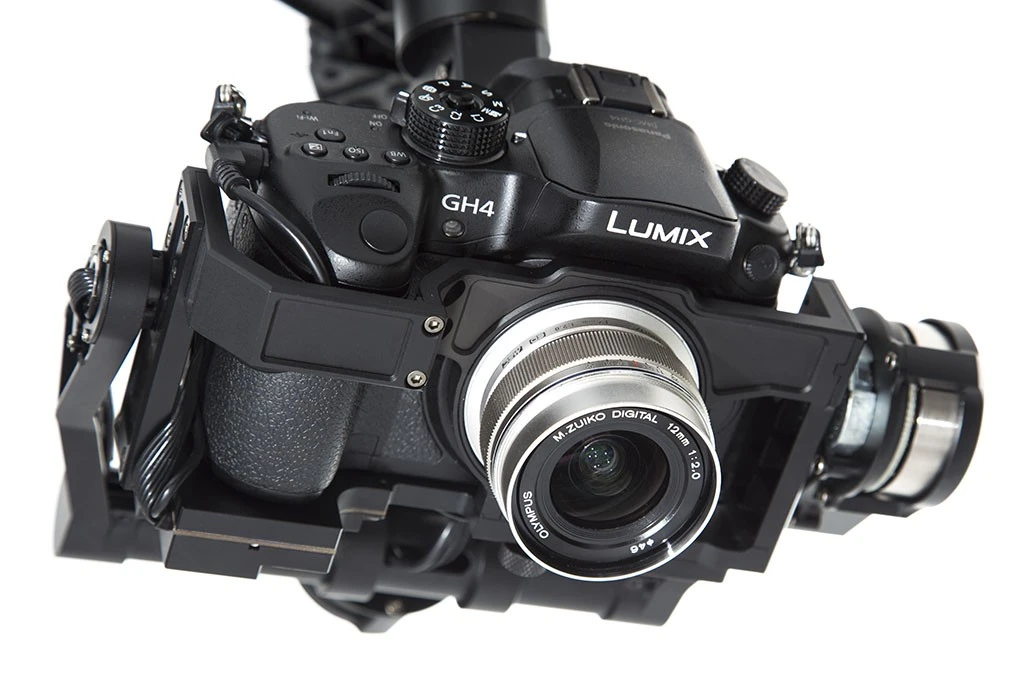

The Zenmuse Z15-GH4 (HD) has been designed specifically for the Panasonic GH4 and GH3 cameras, so either camera can be used, both fit perfectly in the gimbal. The Panasonic GH4 is known for its digital film quality images from the small and lightweight body. The Zenmuse Z15-GH4 (HD) gimbal comes in the GH4 configuration and will connect with your GH4 through the standard HDMI cable, however if you are using a Panasonic GH3 camera with the gimbal you will need to use the included GH3 HDMI cable.

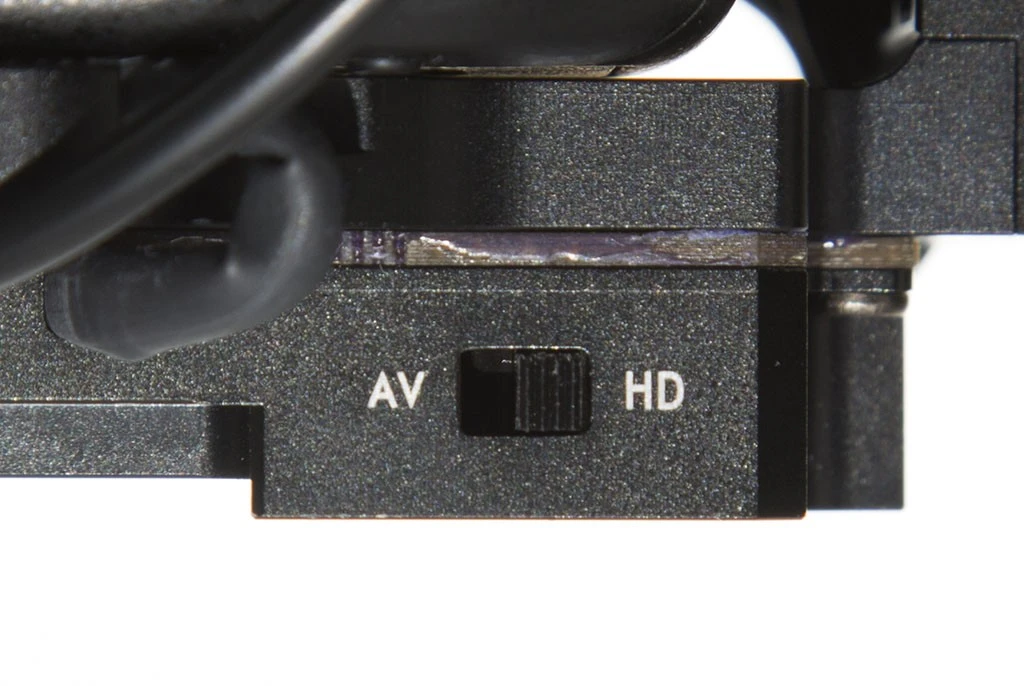

The weight of the gimbal has been reduced by the use of a small video output module which allows control of the camera shutter and other features while converting the HDMI output signal into a first-person-view AV signal for use with video transmitters like the ImmersionRC 600 mW 5.8 GHz Long Range Transmitter. More weight savings have been found within the wiring, this has been kept to a minimum to reduce weight. The video output module can be switched between the HD and AV output modes; the HD option integrates perfectly with the DJI Lightbridge HD digital video downlink.

The GH4 Z15 3-axis Zenmuse gimbal has a potentiometer installed in the rear motor which greatly increases the control, stability and precision while the internal slip rings avoid any complicated external wiring. The use of internal slip rings means that the power and video signal lines have been integrated into gimbal’s tubes; the result is a completely unhindered control axis that offers a maximum yaw of ±360°, pitch of +50°/-140° and a roll of ±40°

With three camera control modes, the GH4 offers the most creativity with ease of flight. The three modes are Orientation-locked, Non Orientation-locked and Back to Mid-point (Horizontal). All three modes can be switched between quickly and easily so the needs of the shoot can be the center of attention.
