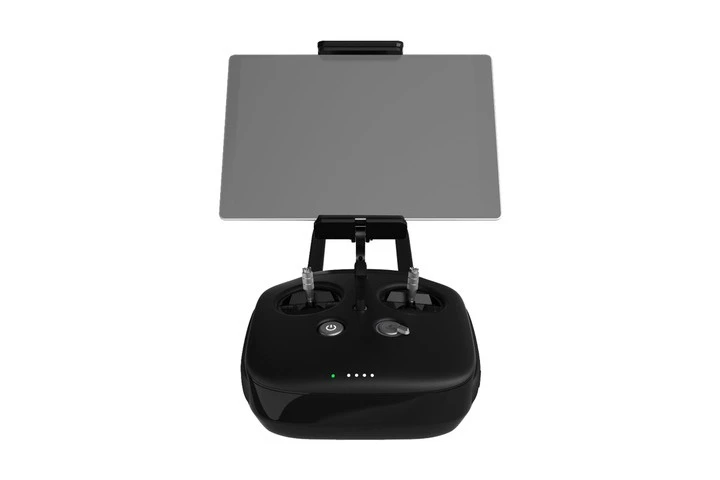

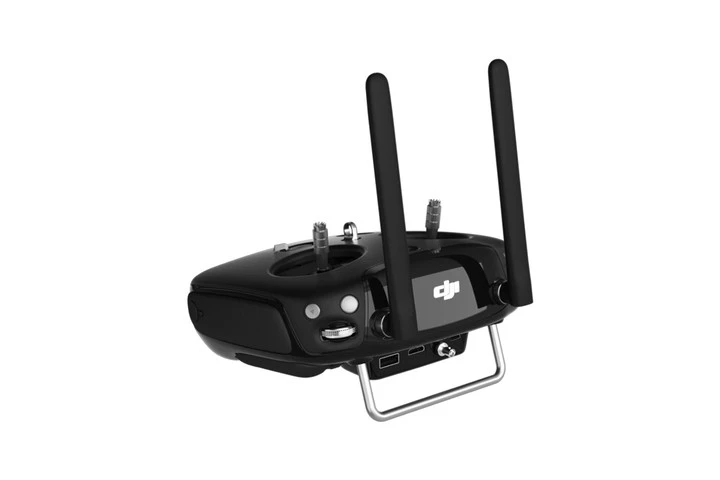

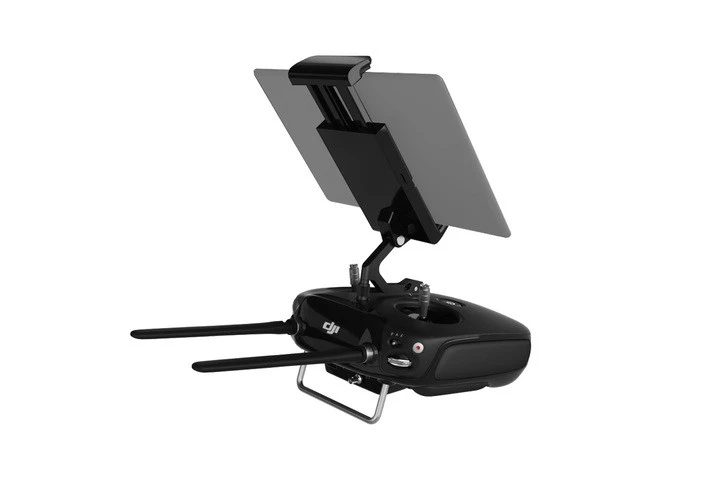

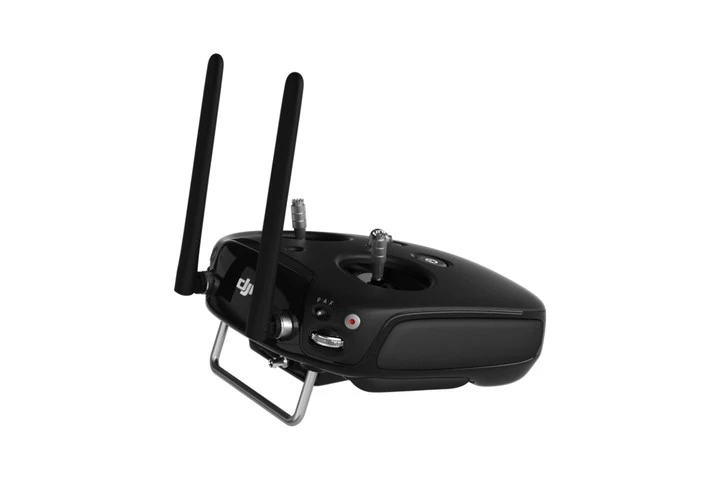

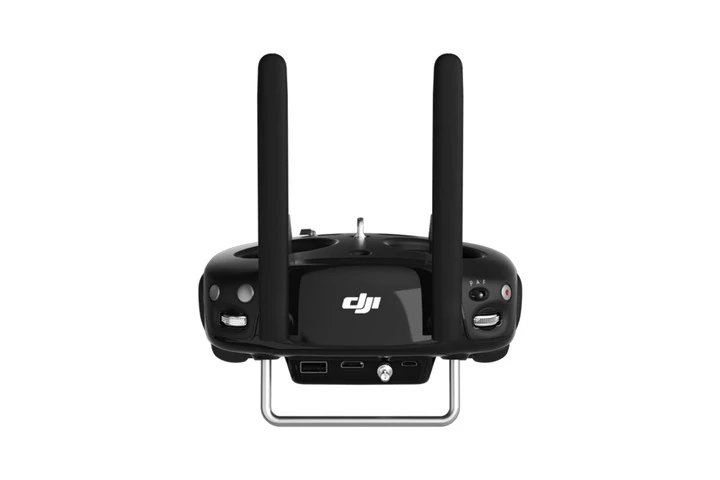

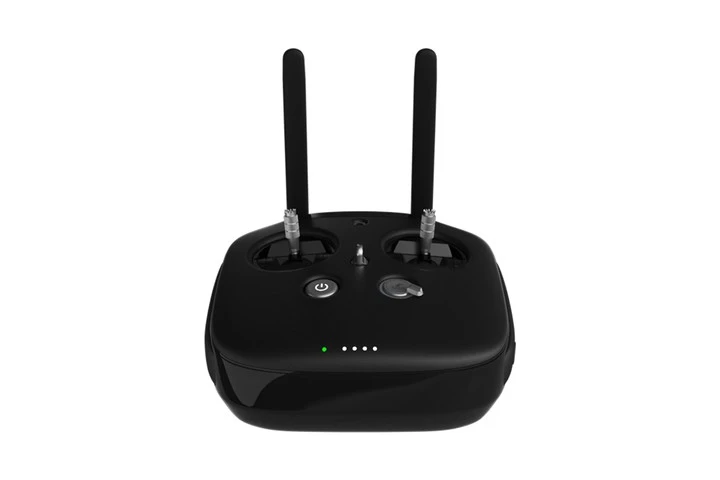

DJI M600 Radio Controller

The DJI M600 Matrice remote controller is an integrated video downlink and aircraft radio control into one system. The Matrice M600 radio controller combined system operates at 2.4 GHz with a maximum signal transmission range of up to 5 km. The device features a number of standard and customizable buttons which allow users to quickly access certain aircraft functions, such as taking and reviewing photos or videos, as well as controlling the gimbal and landing gear. It is powered by an internal 2S rechargeable battery.

Operating Frequency:

• 920.6 MHz to 928 MHz (Japan)

• 5.725 GHz to 5.825 GHz

• 2.400 GHz to 2.483 GHz

Max Transmission Distance (unobstructed, free of interference):

• FCC Compliant: 3.1 miles (5 km)

• CE Compliant: 2.1 miles (3.5 km)

EIRP:

• 10 dBm @ 900 M

• 13 dBm @ 5.8 G

• 20 dBm @ 2.4 G

Features:

• Video Output Port: HDMI, SDI, USB

• Dual Users Capability: Master-and-Slave control

• Mobile Device Holder: Supports smartphones and tablets

• Output Power: 9 W

• Operating Temperature: 14° to 104° F (-10° to 40° C)

• Storage Temperature: Less than 3 months: -4° to 113° F (-20° to 45° C)

• More than 3 months: 72° to 82° F (22° to 28° C)

• Charge Temperature: 32° to 104° F (0° to 40° C)

• Built-in Battery: 6000 mAh, 2S LiPo

• Max Tablet Width: 170 mm
