DJI Inspire 1 Battery Heater

DJI Inspire 1 Battery Heater Part 15

The flight times of the DJI Inspire 1 are subject to environmental factors one of the biggest are flights in low temperatures environments. Low temperatures will have an adverse effect on the performance of Inspire 1 intelligent flight battery. The DJI battery heater helps to maintain the optimum battery performance by heating the battery to a more suitable temperature (above 5 C) before the flight is started. This enables the Inspire 1 and battery to work in a more reliable way.

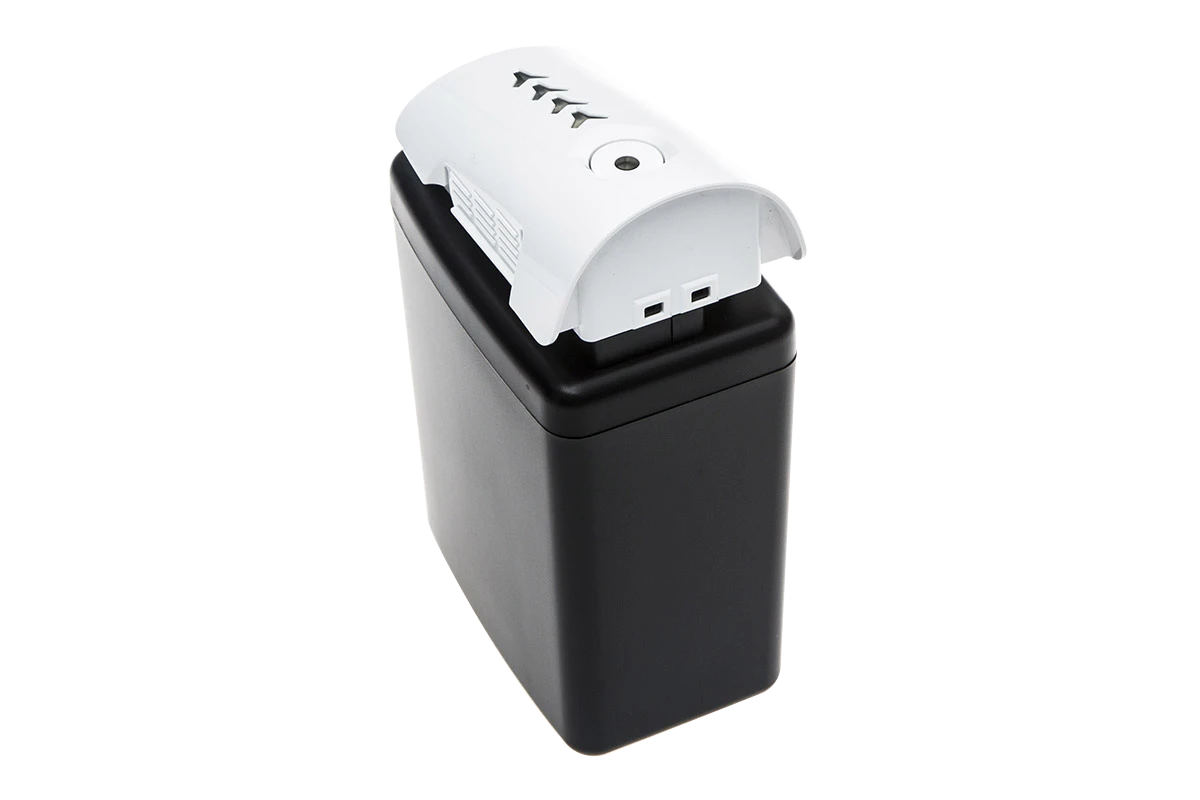

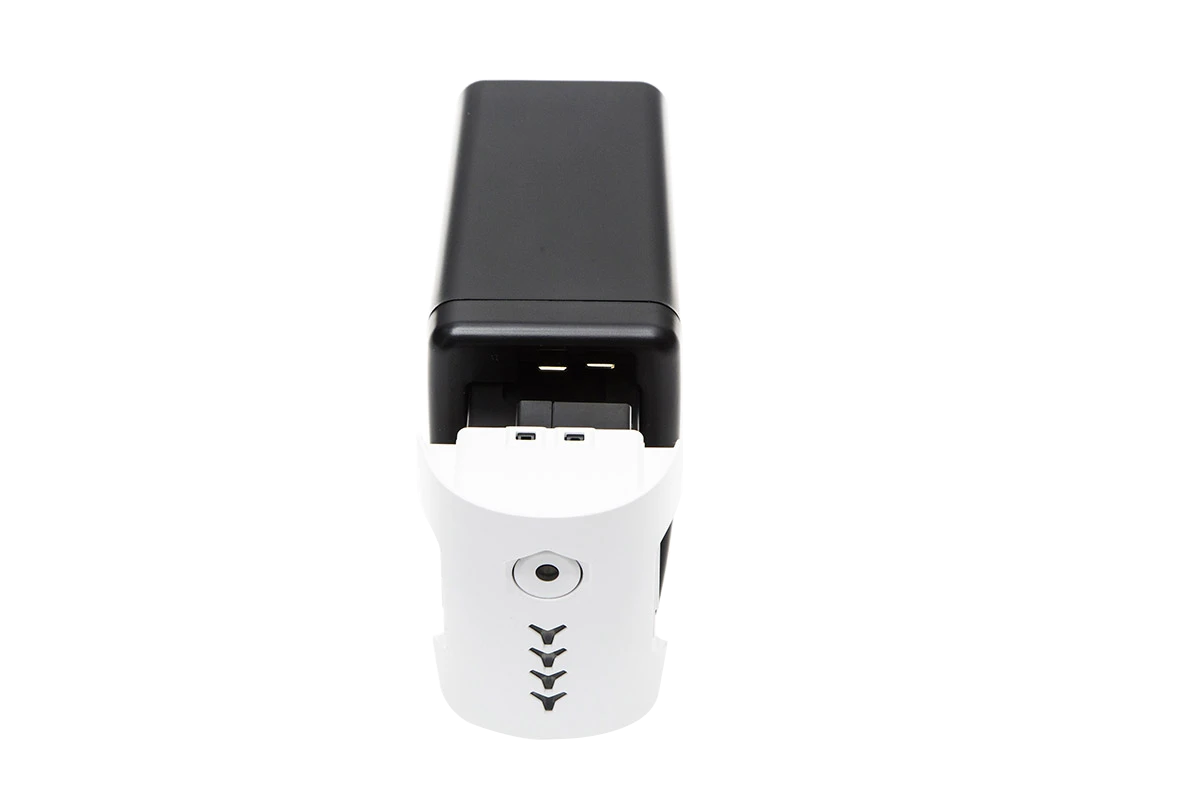

Using the Inspire 1 battery heater is very easy, insert the Intelligent Flight battery into the battery heater compartment before take-off, as it requires a tiny proportion of power from the flight battery to pre-heat.

• Ensure the battery is fully charged and powered off, then insert the battery into the battery heater compartment.

• Turn the battery on and allow it to warm for 10-15 minutes (Actual operation time is subject to environment temperature. Longer or shorter times maybe required). Do not leave the battery unattended for extended period of time.

• Turn the battery off and leave it in the battery heater for an additional 5 minutes (Actual operation time is subject to environment temperature. Longer or shorter times maybe required). The Intelligent Flight Battery is now ready for use.



Tech Spec:

• Recommended Usage Temperature: -20 ° C to 5 ° C

• Heating Range: 30° C± 5 ° C

• Power: no more than 41.5W Input

• Voltage: 18-26.1V, DC Input Amperage: no more than 1.6A

• Dimension: 62mm x 99mm x 115mm

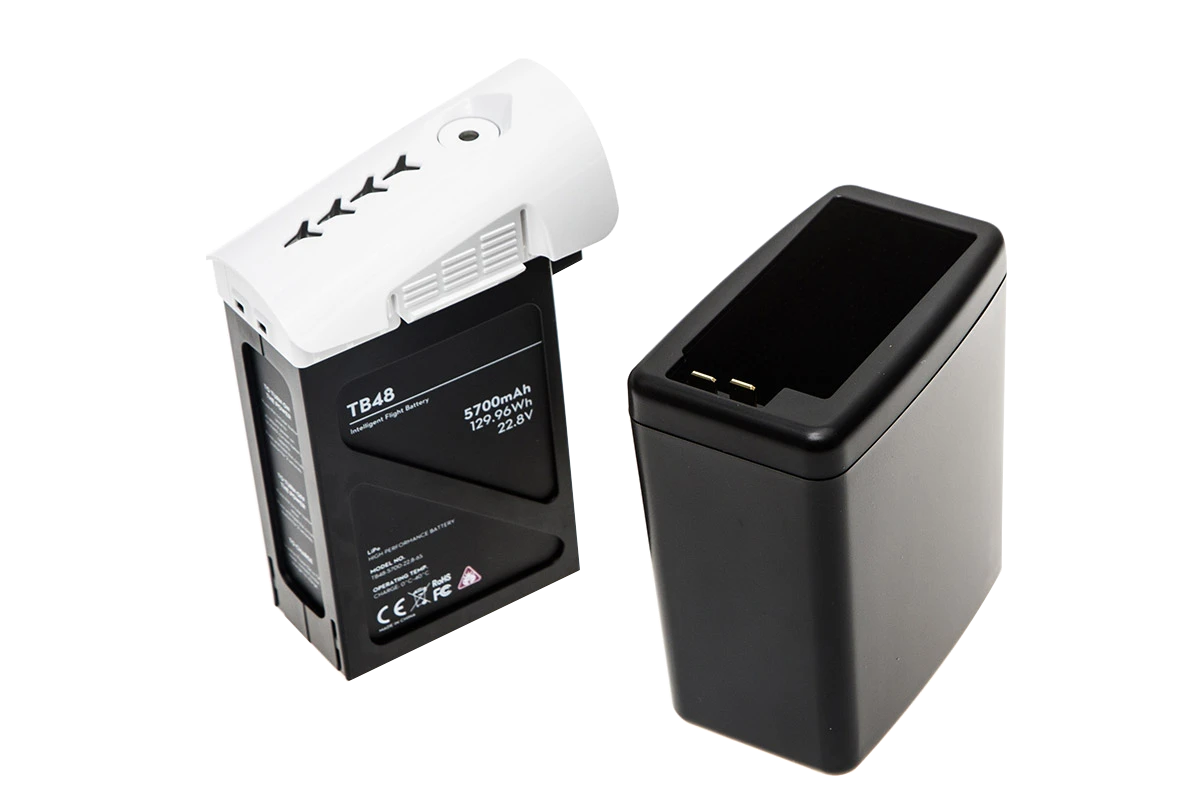

• Will work with both the DJI Inspire 1 TB47 Battery 4500mAh & DJI Inspire 1 TB48 Battery 5700mAh (Not supplied with heater)

Note: A 3-stage overheat protection mechanism has been incorporated into the Battery Heater’s design to prevent the battery from reaching temperatures that exceed its design parameters. To ensure that the battery does not overheat, the heater will be automatically deactivated at temperatures exceeding 30 ° C, with additional failsafe barriers in place at 50° C and 98 ° C.
