Connex Prosight HD Vison Kit

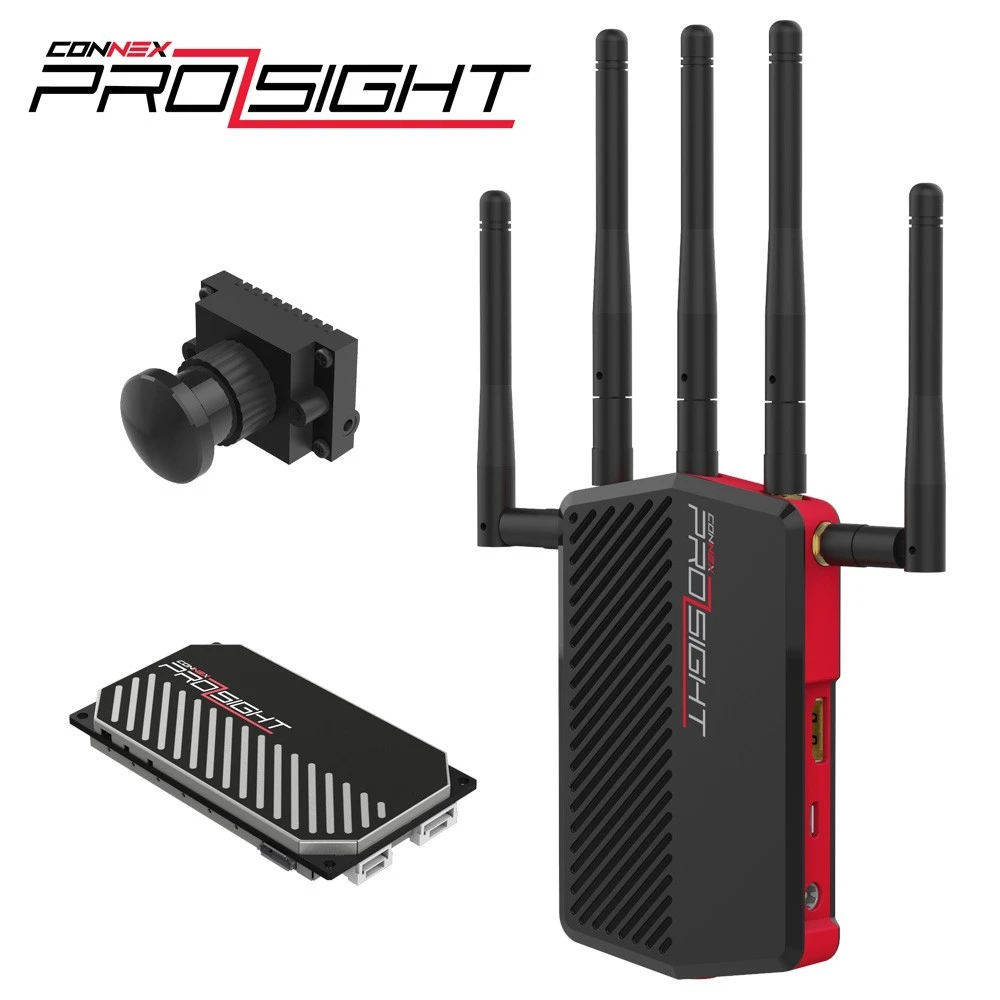

Amimon Connex ProSight HD Vision Kit For FPV Drone Racing

The digital age of FPV racing is here, the Connex Prosight HD Vison kit allows First Person View Pilots to push harder and fly faster with outstanding video quality. The Connex Prosight HD is truly amazing and will change how and where you fly. You can use this HD video link on just about anything, Miniquads, Fixed Wing and ground vehicles.

The Connex Prosight HD bridges the missing link needed in the era of fast and low flying done while FPV drone racing, while analog systems are plagued by poor image quality and connectivity issues when flying in multi-pilot events the Connex Prosight HD works without fault. The Connex ProSight HD video link is transforming FPV drones into a completely new kind of immersive experience for the beginners and experts alike. With unparalleled vision performance and delay-free wireless transmission, the superior HD image quality and easy installation means that you will have the best possible flying experiences.


Features

• 720p at 30fps HD camera with 2.8mm lens (Swappable) and a high-Dynamic Range sensor

• Receiver outputs 720p at 60fps over HDMI for reducing motion blurring

• Transmitter can be powered from a 2s to 4s LiPo

• Compatible with a range of HDMI FPV goggles / monitors and TV’s

• Digitally paired transmitter to receiver, so no video crossover in flight

• (LOS) Line of sight range of between 300m to 1000m depending on conditions

• Advanced yet simple frequency setup for multi-pilot races – automatic and manual modes, supporting up to 27 digital channels

• Built-in OSD menu for system configuration or, configure via Bluetooth using Android/iOSD app

• Camera to HDMI receiver-out maximum latency of 26ms

Camera

•  Dimensions: 28 x 20 x 27mm

• Weight: 13g

• Input Voltage: 5V from the transmitter

• Power Connector: MIPI connector

• Power Consumption: 1W

• Video Interface: MIPI

• SW Upgrade: through transmitter

• Configuration: Via mobile app over Bluetooth, or through transmitter

 Transmitter

•  Dimensions: 70 x 36.5 x 7.2mm

• Weight: 32g

• Input Voltage: 8v-17v (2s to 4s LiPo)

• Power connector: 4 pin

• Power Consumption: 4.1W

• Antennas: 2 external MMCX connectors

• Video Interface: MIPI

• SW Upgrade: micro USB

• Configuration: Via mobile app over Bluetooth

Receiver

• Dimensions: 75 x 115 x 17mm

• Weight: 134g

• Input Voltage: 8V-26V (2s to 6s Lipo)

• Power Connector: DC Jack

• Power Consumption: 3.5W

• Antennas: 5 SMA R/P connectors

• Video Interface: HDMI (Type A)

• SW Upgrade: micro USB

• Configuration: Via mobile app over Bluetooth

 In the Box

• Connex Pro Sight Video Receiver

• Connex Pro Sight Video Transmitter

• Connex Pro Sight Camera

• All necessary cabling

Download the Prosight Manual HERE
