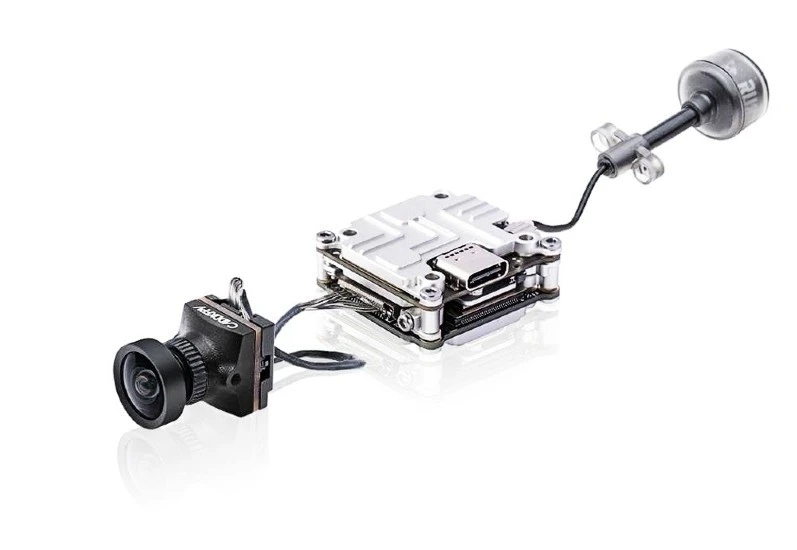

Caddx Nebula Nano V2 Digital FPV Camera Kit

The Caddx Nebula Nano V2 Digital FPV Camera Kit has been designed for small FPV drones. The Caddx Vista Nebula Nano V2 weight is only 24g’s without the antenna. This system can be used with the DJI FPV Goggles, and gives the pilot 720p / 60fps digital high-definition picture with transmission ranges of up to 4km.

The Vista system allows for up to eight drones pilots to fly simultaneously. Each operator has an exclusive channel, this helps reduce the cross-interference and provides an optimal racing experience.

User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers.

Features:

• Lightweight digital image transmission combination

• Stable and clear HD video

• 720p 60fps, 32ms/4km

• 8 channels, 8 drones

• Embedded Remote Controller Receiver

Specifications:

• Model: Vista Kit Black

• Weight: Vista KIT(camera included):24g / Antenna:2.5g

• Dimensions: Vista Kit: 30 x 29 x 13mm Camera: 14 x 14 x 21mm

• Camera Coaxial Cable: 12cm

• Operating Frequency: 5.725-5.850GHz

• Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm

• Min. Latency (end-to-end):720p 60fps: 32ms

• Max. Transmission Distance: FCC / SRRC: 4km, CE: 0.7km

• I/O Interface: USB-C,IPEX,3-in-1 Port

• Supported Flight Control System: F3,F4,F7

• Operating Temperature Range: 32° to 104° F (0℃ ~40℃)

• Input Power: 7.4-26.4V

• Power output: 25mW / 200mW / 500mW / 700mW

• Hardware included:Vista / Nebula nano / Coaxial cable / Antenna

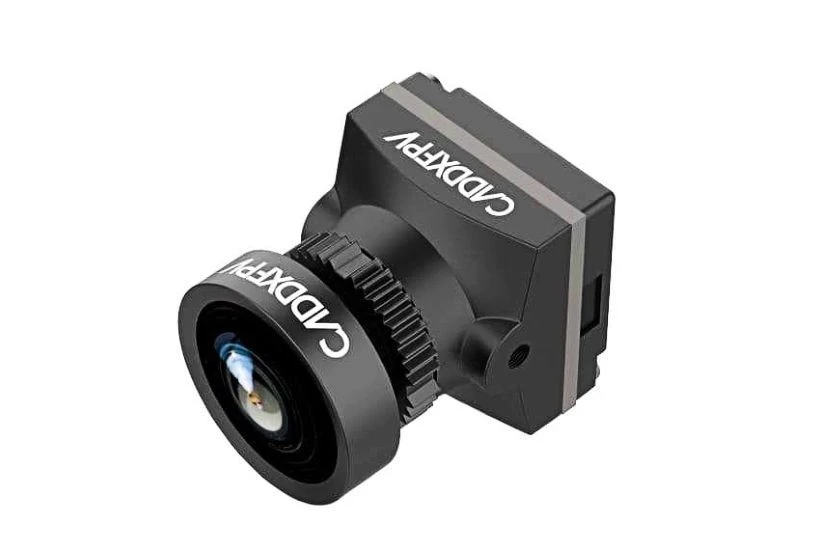

• Camera:Sensor: 1/3”CMOS

• Lens: 2.1mm f/2.1

• Shutter: Rolling shutter

• FOV: 150°[D],122°[H],93°[V]
