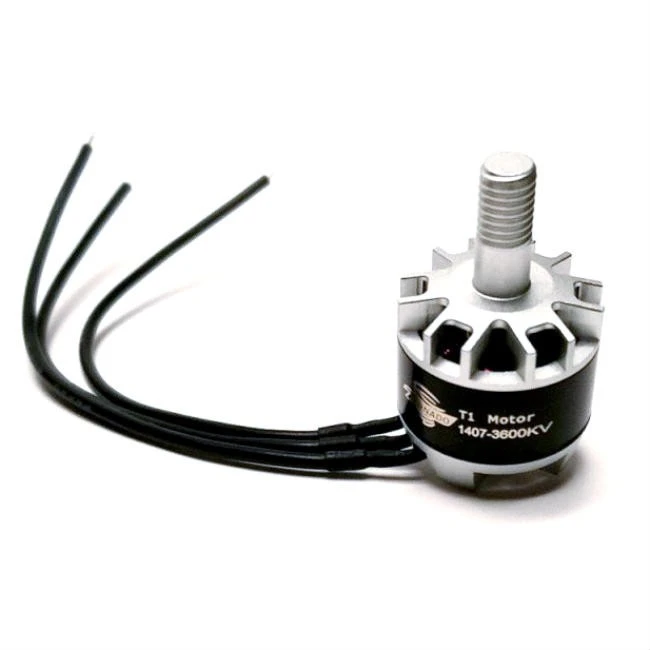

Brotherhobby Tornado T1 1407 3600KV Motor

The Brotherhobby Tornado T1 1407 3600KV motors are a totally new design offering superior power and weight saving over there rivals due to the latest innovations in motor technology. The Brotherhobby Tornado T1 1407 3600KV brushless motors are set to be the motor of choice for many Drone Racing Pilots.

Specs of the Tornado T1 1407 3600KV Motor:

• Model: Tornado T1 1407

• KV: 3600kV

• Weight: Approx. 15g

• Wire AWG: 26AWG

• Stator Diameter: 14mm

• Stator Height: 7mm

• Rotor: 1.5mm N52H (arc magnets)

• Casing Material: Al 7075

• Shaft Diameter: 2mm

• Configuration: 9N12P

• Motor Diameter: 18.6mm

• Motor Height: 30.6mm

• Prop Adapter Shaft Thread: M5

• Input voltage: 3S-4S (12.6 – 16.8v)

• Bolt Pattern: M2 (12mm)

Supplied as 1 x motor clockwise, nylock type nut , fixing bolts and packaging.
